PVC Pipe Production Line


The production line consists of conical twin screw extruder, vacuum tank, haul-off, cuttting unit. Main features: High output, power comsumption low, water comsumption low, ground cover small, labour cost low, noise low, dust less, etc.


Main Features:
Specified screw design for better material plasticizing&mixing effect and lower cost formula.
Higher density and stronger mechanical properties of the pipe as a result of large compression ratio of mold design.
More stable and reliable hauling, no deformation, multi-caterpillar structure of haul-off unit, suitable for different size range.

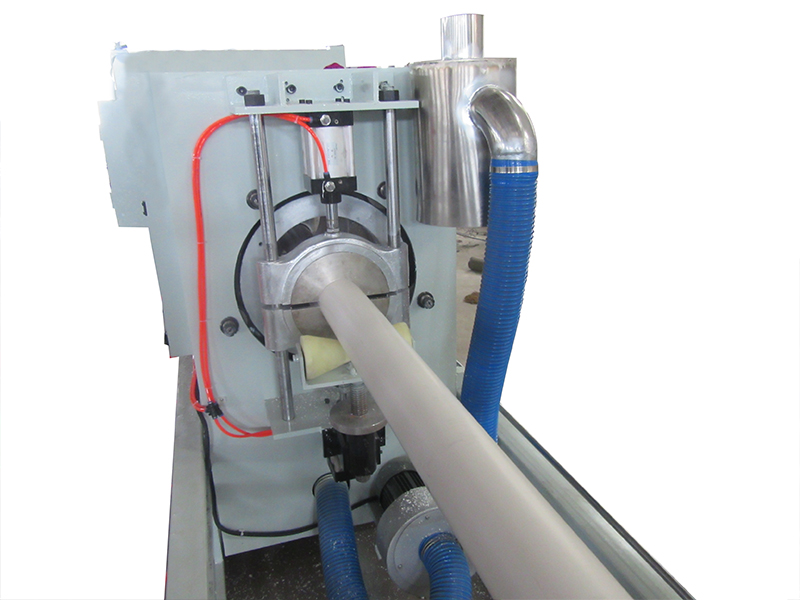

Planetary cutting with chamfering function for stable&reliable cutting and precise length-counting.


Main technical parameters


Model


Pipe range/mm



Capacity kg/h


Maximum linear velocity
(m/min)



Main motor power /kw



Total length/m

SJSZ-65/132

50-110


120-250


6


37


22

SJSZ-80/156

110-250


250-400


5


75


23

SJSZ-92/188

315-630


400-700


1.5


110


32

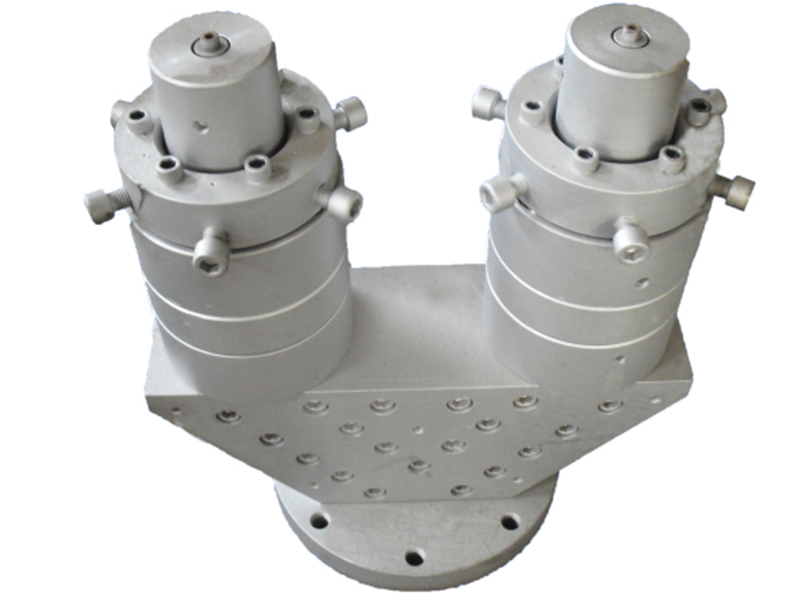

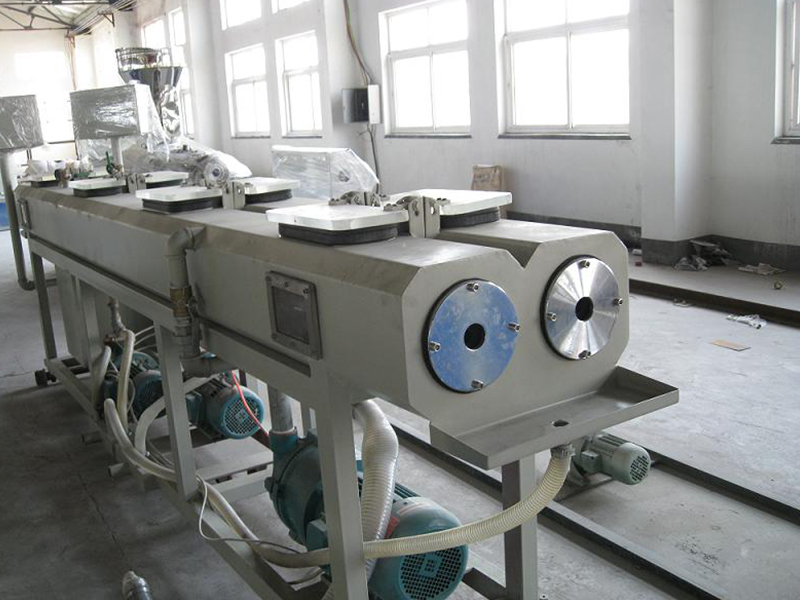

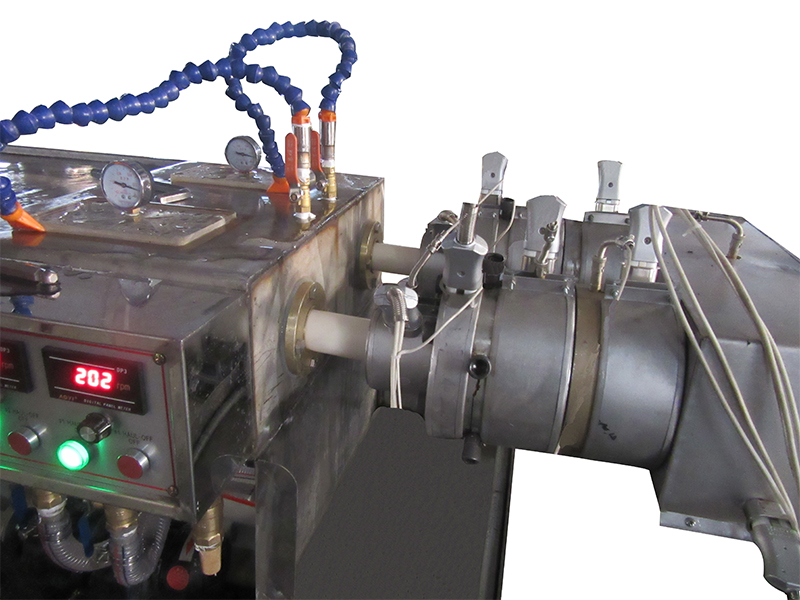

PVC Double-Pipe Production Line

Model

Pipe Diameter

Output

Max Speed

Motor

Total Length

SJSZ-65/132

50-75mm

250-350 kg/h

6m/min*2

30kw

22m

SJSZ-80/156

50-110mm

500-750kg/h

8m/min*2

55kw

23m

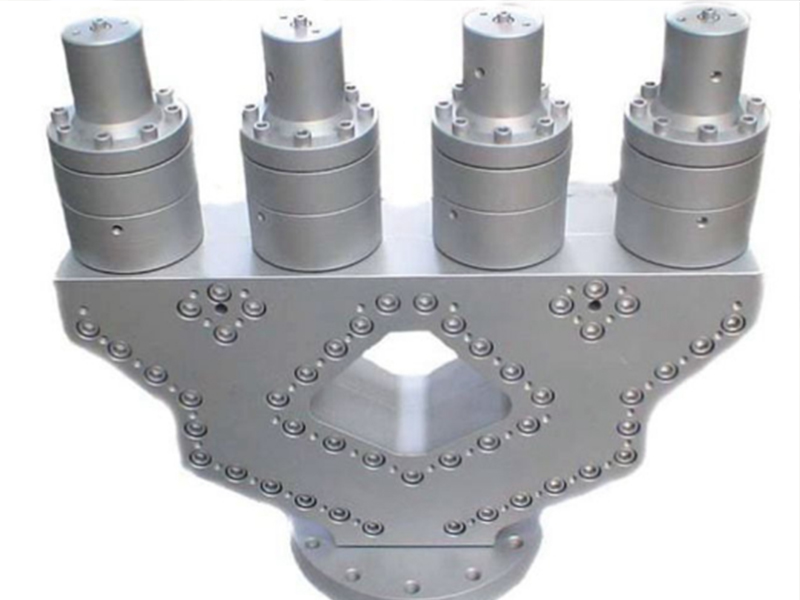

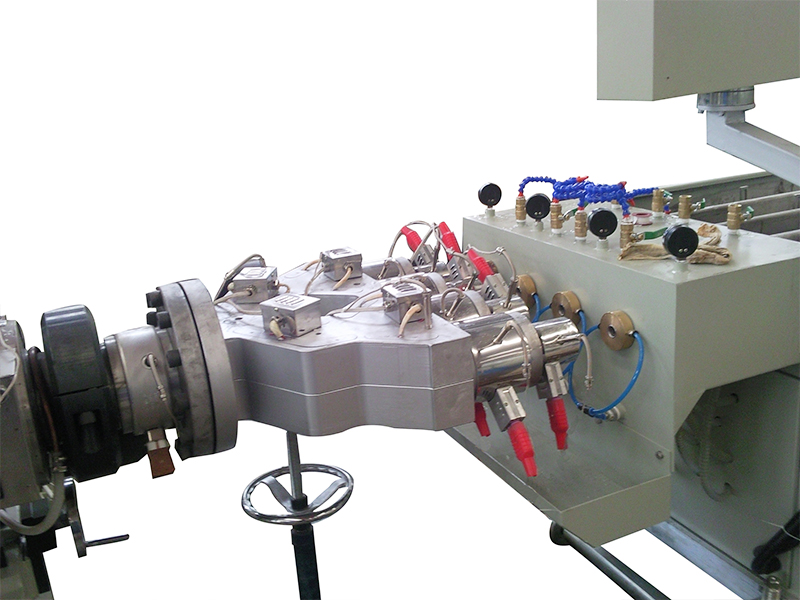

PVC Four-Pipe Production Line

Model

Pipe Diameter

Output

Max Speed

Motor Power

Total Length

SJSZ-65/132

16-32mm

250-350kg/h

15m/min*4

30kw

17m
